Expendable storage
Connect up to 4 units in parallel (up to 20.8 kWh with EP5, or 41.6 kWh with EP11).

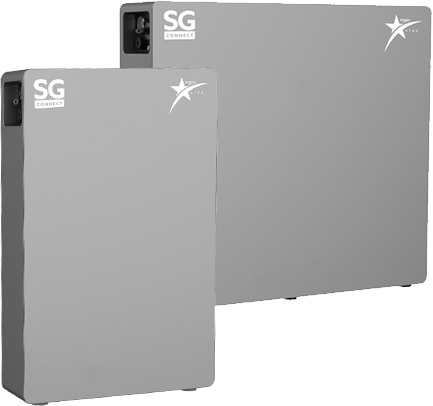

Ngen Star EP Series
High - voltage energy storage
Efficient. Intelligent. Scalable.
The next generation of battery storage is here.
The EP series is built for households and businesses that want powerful storage in a single, compact unit. Whether you start small or go big, both EP5 and EP11 are scalable and built for long-term energy independence. With wall or floor mounting, smart parallel connection, and 90% usable capacity, these batteries are designed for flexibility and performance.
90% depth of discharge
Use up to 90% of your battery's capacity, so you get more usable energy from every charge.
Flexible mounting
Floor- or wall-mounted, depending on your space.
Long lifespan
Over 4,000 cycles, with 10-year extended warranty.
Key features
Shared by EP5 and EP11
High-voltrage design
Boosts efficiency and minimizes conversion losses.
Indoor or Outdoor installation
IP65 certification ensures safety anywhere.
Natural cooling
Silent and maintenance-free operation.
Seamless SG Connect integration
Optimized when paired with our inverters and platform.
Lara's tip
What is
IP65 protection?
IP65 protection?
With IP65 certification, Star batteries are fully protected from dust and resistant to water jets from any direction. That means you can safely install them in a garage, basement, utility room, or even in a covered outdoor area — without worrying about weather or dirt.
Recommendation for outdoor installation:
Install in a protected outdoor cabinet, ventilated technical room, or under a roofed structure. Avoid direct weather exposure to ensure battery safety and long-term performance.
Recommendation for outdoor installation:
Install in a protected outdoor cabinet, ventilated technical room, or under a roofed structure. Avoid direct weather exposure to ensure battery safety and long-term performance.
Lara's tip
What means 90%
depth of discharge?
depth of discharge?
Most battery systems only let you use 50-80% of their total capacity. Star batteries give you up to 90% usable energy, without sacrificing lifespan — so you get more value, more self-sufficiency, and fewer charging cycles.
Standard batteries (e.g. lead-acid)
Typically only 50-60% depth of discharge to preserve lifespan.
Lower-cost lithium-ion batteries
Often around 80-85% depth of discharge.
Ngen Star EP
Offers up to 90% usable energy per cycle — without compromising battery life.

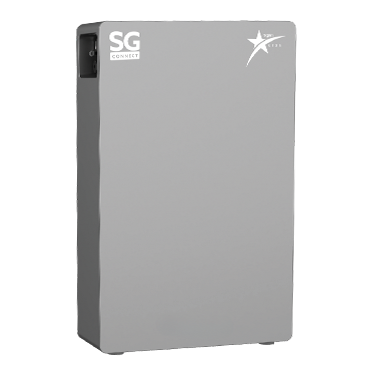

Ngen Star EP 5
Compact and adaptable
Smaller size, big possibilities.
With 5.18kWh of capacity per unit, the EP5 is perfect for homes and light commercial setups. Its slim, lightweight design (just 50.5kg) allows for easy mounting — even in tight spaces. Ideal when you need scalable storage without compromising room.
Nominal energy
5.18 kWh
Nominal voltage
192 V
Dimensions
380 x 625 x 147 MM
Weight
50.5 KG
Expandable to
20.8 kWh
Compatible with
H1, H3, H3-PRO Inverters
Warranty
10 years
Item number
505106
Nominal energy
10.36 kWh
Nominal voltage
384 V
Dimensions
710 x 625 x 147 MM
Weight
99KG
Expandable to
41.6 kWh
Compatible with
H1, H3, H3-PRO Inverters
Warranty
10 years
Item number
505107

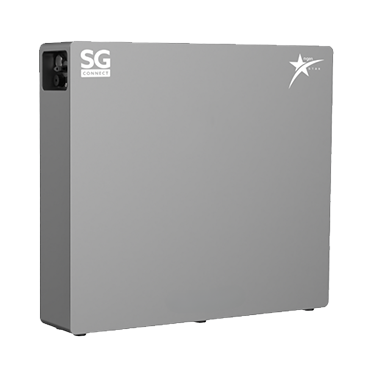

Ngen Star EP 11
Powerful and future-proof
Double the energy, same smart design.
The EP11 packs 10.36kWh per unit — and up to 41.6kWh when expanded. Its higher voltage (384V) ensures maximum efficiency for demanding systems. Ideal for users with higher consumption, EV charging, or backup requirements.
Ready to get started?
Find a local installer or distibuter —
or reach out and we'll guide you.
