Hybrid ready
Supports solar + battery + grid interaction in one device.

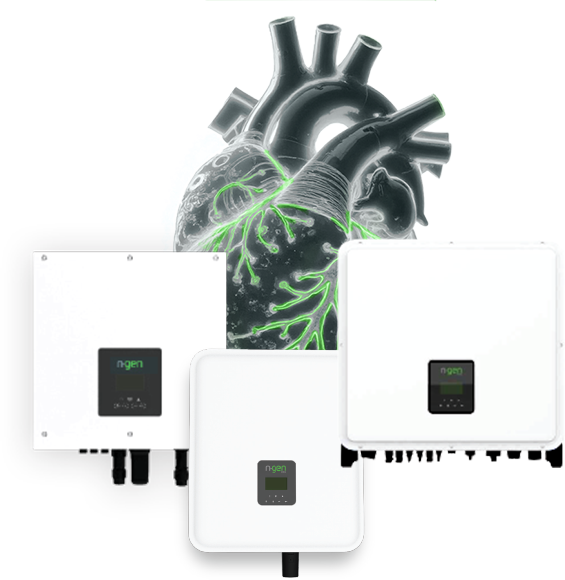

Hybrid inverters
The heart of your energy system
that connects sun, storage, and usage
that connects sun, storage, and usage
Efficient, powerful, and future-ready.
NGEN STAR inverters are designed to be the intelligent link between your solar panels, battery storage, and the grid. With hybrid and micro options, single- and three-phase models, and seamless integration with SG Connect, our inverters give you the flexibility, control, and performance your energy system needs — today and tomorrow.
Emergency power supply
Automatic switchover in case of a power outage (20ms Switching time).
Outdoor or indoor installation
IP65 certification ensures safety anywhere.
Smart grid ready
Your heat pump communicates with the grid and automatically runs when electricity is cheapest.
Key features
shared across models
Remote control
Monitor and manage via SG Connect app.
Simple integration
Easily integrates with NGEN STAR battery towers and EP batteries.
Efficient cooling
Combines passive airflow and smart fan control to ensure optimal temperature and quiet operation.
Up to 97.8% efficiency
Market-leading performance.
Lara's tip
What is
IP65 protection?
IP65 protection?
Star inverters are certified with IP65 protection, which means they are dust-tight and resistant to low-pressure water jets from any direction. This makes them suitable for outdoor installation in appropriately protected environments.
Recommendation:
While Star inverters are designed for outdoor use, it is mandatory to protect them from direct exposure to weather conditions, such as sunlight, rain, snow, or heavy storms. For optimal performance and extended service life, we strongly recommend installing the inverter in a covered or semi-covered area, such as under a roof, canopy, or carport.
Recommendation:
While Star inverters are designed for outdoor use, it is mandatory to protect them from direct exposure to weather conditions, such as sunlight, rain, snow, or heavy storms. For optimal performance and extended service life, we strongly recommend installing the inverter in a covered or semi-covered area, such as under a roof, canopy, or carport.
Lara's tip
What means
97.8% Efficiency?
97.8% Efficiency?
NGEN STAR inverters convert solar DC power into usable AC electricity with up to 97.8% efficiency — meaning less than 3% is lost in the conversion process. This places them among the most efficient inverters on the market.
Even small percentage gains in efficiency can result in significant long-term savings.
Even small percentage gains in efficiency can result in significant long-term savings.
Comparison
| Feature | H1-3.7E | H1-6.0-E | H3-12.0-E | H3-15.0-PRO | H3-22.0-PRO | H3-29.9-PRO | H3-30.0-PRO |
| i Phase type | single-phase | three-phase | three-phase | three-phase | three-phase | three-phase | three-phase |
| i Rated output power | 3.68 kW | 6.0 kW | 12.0 kW | 15.0 kW | 22.0 kW | 29.9 kW | 30.0 kW |
| i Battery support | Yes | Yes | Yes | Yes (dual tower) | Yes (dual tower) | Yes (dual tower) | Yes (dual tower) |
| i Battery configuration | 1 Master + Up to 8 Slaves | 1 Master + Up to 8 Slaves | 1 Master + Up to 8 Slaves | 1 Master + Up to 8 Slaves per tower | 1 Master + Up to 8 Slaves per tower | 1 Master + Up to 8 Slaves per tower | 1 Master + Up to 8 Slaves per tower |
| i EPS Backup | Yes (single-phase) | Yes (single-phase) | Yes (three-phase) | Yes (three-phase) | Yes (three-phase) | Yes (three-phase) | Yes (three-phase) |
| i Max storage capacity | 41.93 kWh | 41.93 kWh | 41.93 kWh | 83.88 kWh | 83.88 kWh | 83.88 kWh | 83.88 kWh |
| i Number of MPP trackers | 2 | 2 | 2 | 3 | 3 | 3 | 3 |
| i Max efficiency | 97.08 % | 97.08 % | 98 % | 97.8 % | 97.8 % | 97.8 % | 97.8 % |
| i Dimensions(mm) | 434 x 418 x 185 | 434 x 418 x 185 | 449 x 519 x 198 | 600 x 560 x 225 | 600 x 560 x 225 | 600 x 560 x 225 | 600 x 560 x 225 |
| i IP protection | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
H1 series
Star-H1-3.7-E
Compact single-phase hybrid
inverter for smaller homes
inverter for smaller homes
Item number 504631
Ngen Star Inverter H1
Rated AC power
3680 W
Max storage capacity
41.93 kWh
Dimensions
434 x 418 x 185 mm
Warranty
10 years
Battery requirements
Min 1 Master
and 1 Slaves
Max Up to 8 Slaves per tower
| Bundle | Inverter type | Power [kW] | Smart box | Item number |
| H1-3.7-A163 | H1 | 3.7 | A163 | 505179 |
| H1-3.7-B163 | H1 | 3.7 | B163 | 505180 |
Star-H1-6.0-E
Flexible three-phase inverter
with higher output
with higher output
Item number 504631
Ngen Star Inverter H1
Rated AC power
6000 W
Max storage capacity
41.93 kWh
Dimensions
434 x 418 x 185 mm
Warranty
10 years
Battery requirements
Min 1 Master
and 1 Slaves
Max Up to 8 Slaves per tower
| Bundle | Inverter type | Power [kW] | Smart box | Item number |
| H1-6-A163 | H1 | 6 | A163 | 504657 |
| H1-6-B163 | H1 | 6 | B163 | 504658 |
H3 series
Three Phase Inverters
Star-H3-12.0-E
Item number 504631
Ngen Star Inverter H3
Rated AC power
12 kW
Max storage capacity
41.93 kWh
Dimensions
449 x 519 x 198 mm
Warranty
10 years
Battery requirements
Min 1 Master
and 2 Slaves
Max Up to 8 Slaves per tower
| Bundle | Inverter type | Power [kW] | Smart box | Item number |
| H3-12-A363 | H3 | 12 | A363 | 505179 |
| H3-12-B363 | H3 | 12 | B363 | 505180 |
H3 PRO series
Three Phase Inverters
Star-H3-15.0-PRO
Advanced three-phase solution
with extended capabilities
with extended capabilities
Item number 504633
Ngen Star Inverter H3 PRO
Rated AC power
15 kW
Max storage capacity
83.88 kWh
Dimensions
600 x 560 x 225 mm
Warranty
10 years
Battery requirements
Min 1 Master
and 2 Slaves
Max Up to 8 Slaves per tower
| Bundle | Inverter type | Power [kW] | Smart box | Item number |
| H3P-15-A363 | H3-PRO | 15 | A363 | 504665 |
| H3P-15-B363 | H3-PRO | 15 | B363 | 504666 |
Star-H3-22.0-PRO
High-capacity three-phase
inverter for demanding users
inverter for demanding users
Item number 504634
Ngen Star Inverter H3 PRO
Rated AC power
22 kW
Max storage capacity
83.88 kWh
Dimensions
600 x 560 x 225 mm
Warranty
10 years
Battery requirements
Min 1 Master
and 2 Slaves
Max Up to 8 Slaves per tower
| Bundle | Inverter type | Power [kW] | Smart box | Item number |
| H3P-22-A363 | H3-PRO | 22 | A363 | 504669 |
| H3P-22-B363 | H3-PRO | 22 | B363 | 504670 |
Star-H3-29.9-PRO
Maximum output,
maximum flexibility
maximum flexibility
Item number 504634
Ngen Star Inverter H3 PRO
Rated AC power
29.9 kW
Max storage capacity
83.88 kWh
Dimensions
600 x 560 x 225 mm
Warranty
10 years
Battery requirements
Min 1 Master
and 2 Slaves
Max Up to 8 Slaves per tower
| Bundle | Inverter type | Power [kW] | Smart box | Item number |
| H3P-29.9-A363 | H3-PRO | 29.9 | A363 | 504673 |
| H3P-29.9-B363 | H3-PRO | 29.9 | B363 | 504674 |
| H3P-29.9-C300 | H3-PRO | 29.9 | C100 | 504675 |
Star-H3-30.0-PRO
Maximum output,
maximum flexibility
maximum flexibility
Item number 504634
Ngen Star Inverter H3 PRO
Rated AC power
30 kW
Max storage capacity
83.88 kWh
Dimensions
600 x 560 x 225 mm
Warranty
10 years
Battery requirements
Min 1 Master
and 2 Slaves
Max Up to 8 Slaves per tower
| Bundle | Inverter type | Power [kW] | Smart box | Item number |
| H3P-30-A363 | H3-PRO | 30 | A363 | 504673 |
| H3P-30-B363 | H3-PRO | 30 | B363 | 504674 |
| H3P-30-C300 | H3-PRO | 30 | C100 | 504675 |
Ready to get started?
Find a local installer or distibuter —
or reach out and we'll guide you.
